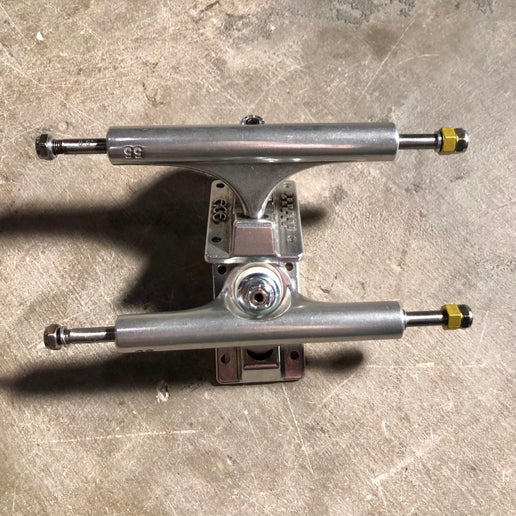

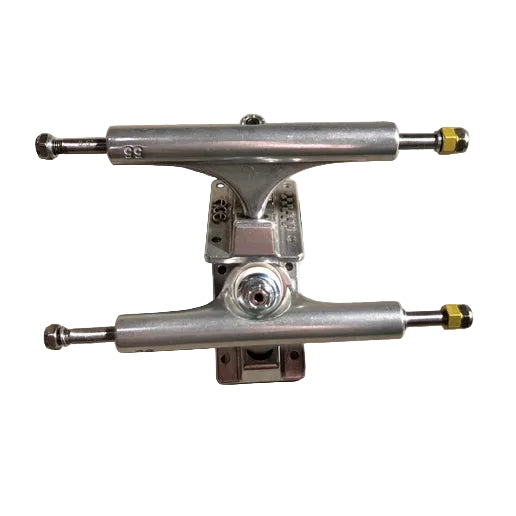

Ace Trucks - AF1 Low Polished Truck

The ACE AF1 LOW features HOLLOW Kingpins for a lightweight, lower profile AF1. Carefully manufactured using our proprietary casting process, the AF1 has a 70% increase in the aluminum’s structural integrity, making it the strongest and longest lasting cast truck on the market.

• Truck height: 1.93" (49mm)

• Manufactured with high-quality AA 356.2 alloy using our own proprietary casting method

• True T6 heat-treated baseplates and hangers

• SAE 4140 steel alloy axles, oversized to eliminate bearing wobble.

• Patent pending rethreading axle nuts - no more damaged axle ends!

• Durable Hand-poured 96a urethane pivot bushings for better response.

• Refined suspension for a cleaner turn.

• Top Bushing: 10mm tall | 91a hardness

• Bottom Bushing: Bottom 12mm tall | 86a hardness

• Machine-faced hanger ends for precise bearing contact.

• Each truck includes bonus red Axle Re-Theader Die
